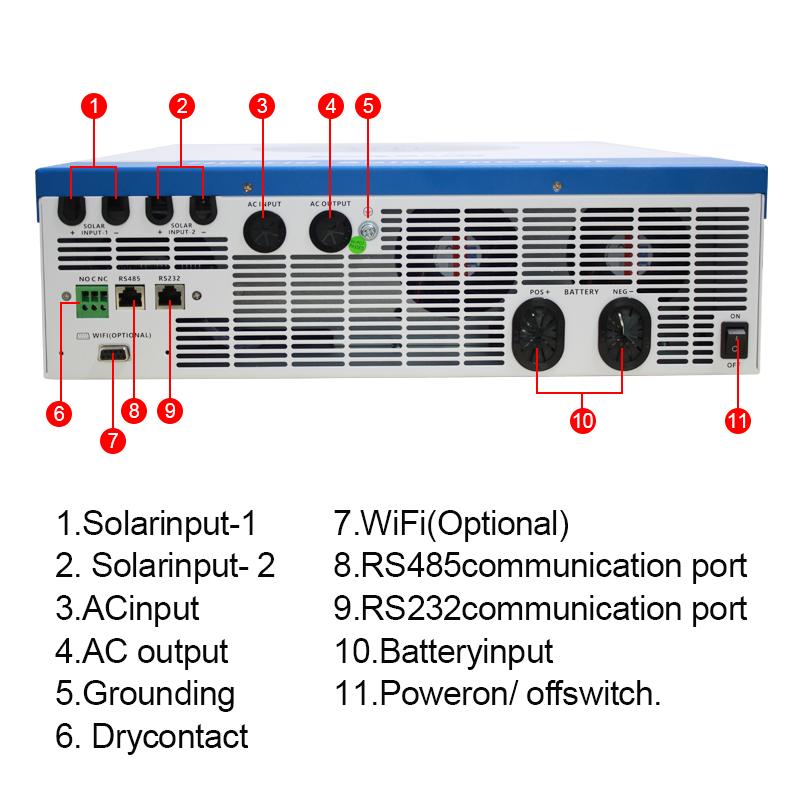

EASUN POWER 11KW Soalr Inverter MPPT 140A Charger 220VAC 48VDC

MODEL

ISolar- SMG-II-11KW-48V-WiFi

Capacity

Maximum PV Input Power

12.4KW

Parallel Capability

NO

Lithium Battery Activation

YES ( By PV or Utility)

Lithium Battery Communication

YES(RS485)

INPUT

Nominal Voltage

230VAC

Acceptable Voltage Range

170-280VAC(For personal Computer);:90-280VAC(For Home Appliances)

Frequency

50/60 Hz (Auto sensin

OUTPUT

Nominal Voltage

220/230/240VAC

Surge Power

17000VA

Frequency

50/60 Hz

Waveform

Pure Sine wave

Transfer Time

10ms(For personal Computer);20ms(For Home Appliances)

Peak Efficiency

94%

Overload Protection

5s@＞=140% load; 10s@110%~140% load

Admissible Power Factor

0.6~1 (inductive or capacitive)

BATTERY

Battery Voltage

48VDC

Maximum Discharge Current

1 80A

Floating Charge Voltage

54VDC

OverCharge Protection

63VDC

Charging Method

CC/CV

SOLAR CHARGER & AC CHARGER

Solar Charger TYPE

MPPT

Max.PV Array Power

5000W*2

Max. PV Array Open Circuit Voltage

500VDC

PV Array MPPT Voltage Range

60VDC~500VDC

Max. Solar Input Current

18A*2

Max. Solar Charge Current

140A

Max. AC Charge Current

120A

Max. Charge Current

140A

PHYSICAL

Dimensions, D x W x H(mm)

540*415*122

Net Weight (Kgs)

14

Communication Interface

RS232/RS485/DRY CONTACT

LCD

YES

ENVIRONMENT

Operating Temperature Range

-10°C to 55°C

Storage temperature

-15°C~ 60°C

Humidity

5% to 95% Relative Humidity (Non-condensing)
